Tubular Motor for Roller Shutters & Blinds | Window-All

50 Nm: in stock in Florence, Italy – dispatched in 1–2 business days (delivery: Italy 2–5, EU 3–8 business days). 20, 30 and 80 Nm: currently out of stock.

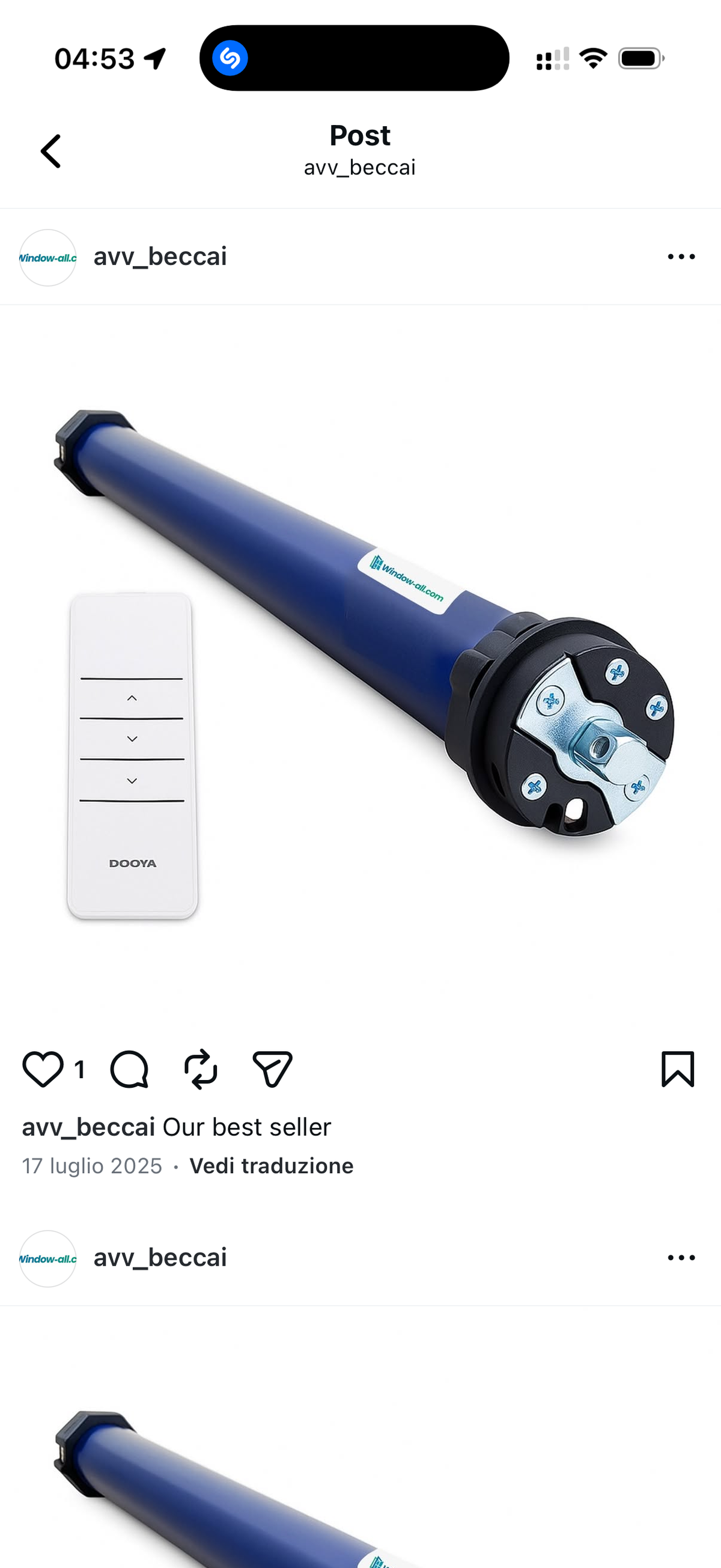

Radio-controlled tubular motor for roller shutters, awnings and blinds. Quiet, with built-in thermal cut-off and simple in-tube installation for 60 mm octagonal tubes.

In the box — ready to install

• Tubular motor with built-in radio receiver
• Remote control
• Flat mounting bracket
• 2 adapters for 60 mm octagonal tube (crown + drive wheel)
• Limit adjustment rod, retaining clip and safety insert
• Installation manual

Which motor do I need?

• 20 Nm — small windows and light shutters
• 50 Nm — the standard choice: suits most roller shutters on the market, on the usual 60 mm octagonal tube
• 80 Nm — large, heavy shutters and patio doors

To estimate your shutter's weight: a PVC shutter weighs about 5 kg per m² (width × height). Steel shutters weigh more. For large or heavy shutters, choose 80 Nm.

Features

• Remote control included — no wall wiring required
• Adjustable end limits for precise open and closed positions
• Integrated thermal protection against overheating
• In-tube installation for 60 mm octagonal tubes
• Suitable for residential and commercial use

Specifications (50 Nm)

50 Nm · 230 V 50 Hz · 205 W · 0.89 A · 12 rpm · Ø45 mm · IP44 · insulation class H · S2 4 min duty · 3.22 kg

5-year warranty

Every Window-All motor is covered for 5 years against manufacturing defects. If it fails, we replace it.

From a Florentine shutter family since 1926.
